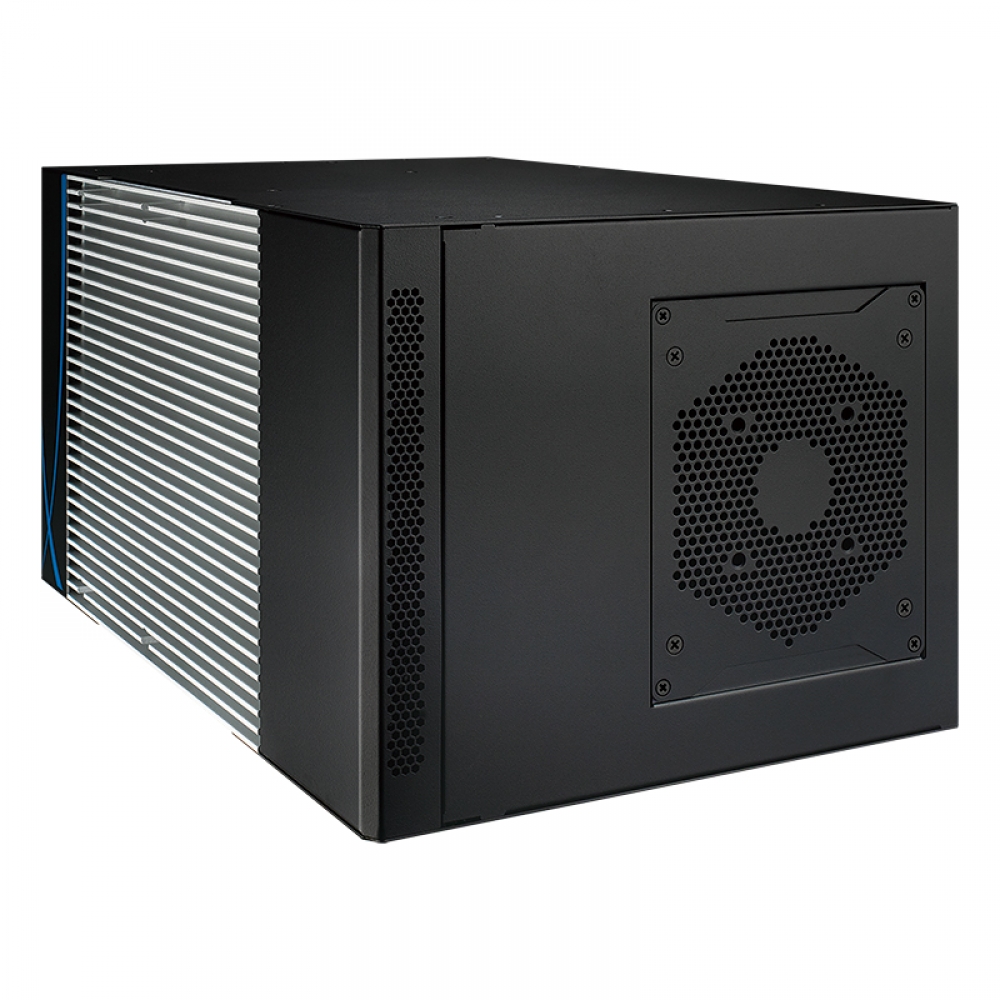

Vecow RCX-2750 PEG

Featuring workstation-grade platform: powered by 11th Generation Intel® Xeon®/Core™ i7/i5 processor (Rocket Lake-S) and running with W580 chipset, Vecow RCX-2000 PEG delivers high-performance computing capability with up to 19% CPU productivity improved. The system is equipped with PCIe x16 slot that supports max 750W power for NVIDIA® or AMD graphics engine and allows for scalability of expansion with 5 PCIe, 2 Mini PCIe, 4 M.2. Vecow RCX-2000 supports 4 DDR4 memory up to 128GB and features max. 7 independent displays with 8K resolution. The brand new RCX-2000 PEG offers a variety of connectivity and supports 9V to 55V DC-in to meet industrial requirements and is ideally suited for High-Speed AOI, 3D Mapping, Rolling Stock and any AIoT/Industry 4.0 applications.

Workstation-grade Platform : 8-core 11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S) running with Intel® W580 chipset, up to 19% CPU productivity improved 1500W power budget supports max dual 750W NVIDIA® Tesla®/Quadro®/GeForce® or AMD Radeon™ 3-slot graphics card
Expansion : 2 PCIe x8 Gen4, 3 PCIe x4, 2 Mini PCIe, 1 M.2 Key E, 1 M.2 Key B
DDR4 Memory supports up to 3200MHz, optional with ECC
Multiple 5G/WiFi 6/4G/LTE/GPRS/UMTS, TPM 2.0, vPRO
DC 9V to 55V Power Input, Software Ignition Control
Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Industria / Sistemas
Seguridad
Smart City
Transporte

4G
5G
AMD
DC
Display Port
HDD
Intel
Interfaz
LAN
Linux
Lte
Serie
SSD
USB
Wifi
Windows

Specifications

System
Processor	11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S)
Chipset	Intel® W580
BIOS	AMI
SIO	IT8786E
Memory	4 DDR4 SO-DIMM, up to 128GB (ECC/Non-ECC)
OS	Windows 10, Linux

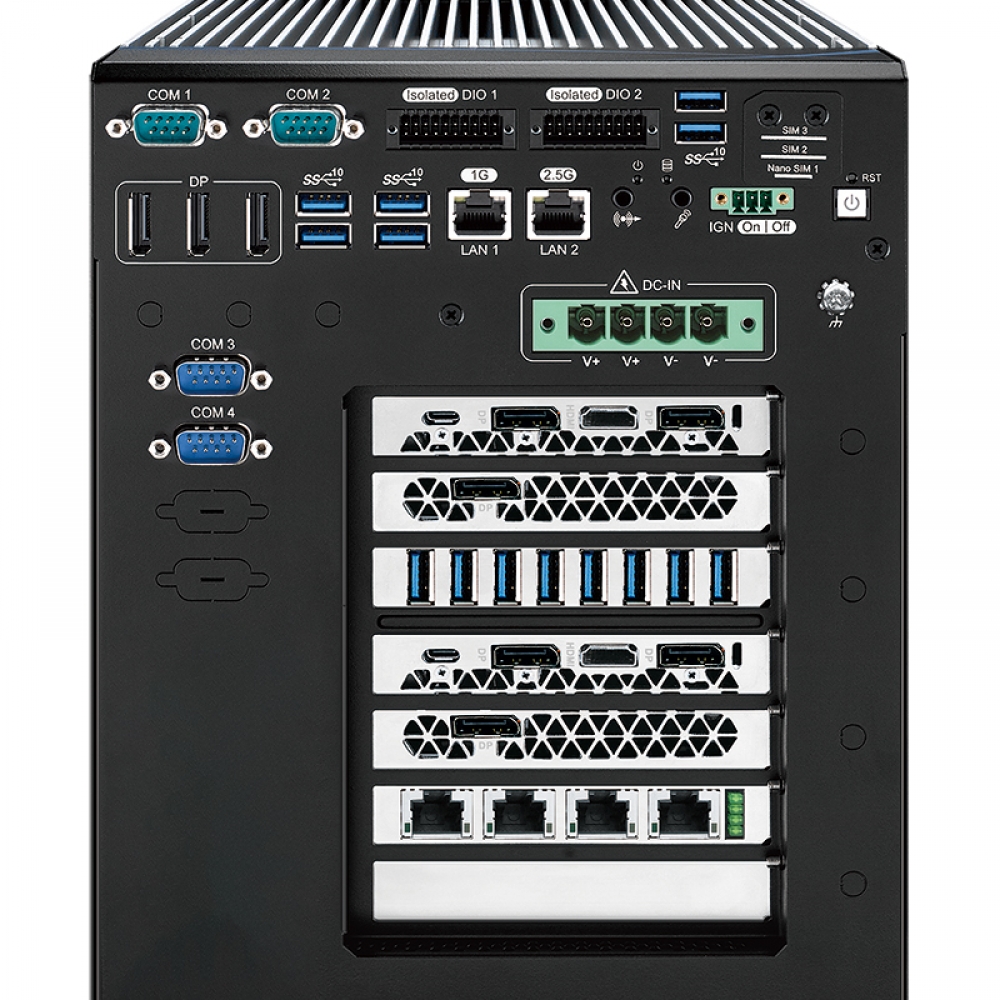

I/O Interface
Serial	4 COM RS-232/422/485
USB	- 6 USB 3.2 Gen2 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	HDD, Power
SIM Card	3 External SIM Card Socket
Expansion
Mini PCIe	2 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA
PCIe	5 PCIe x16 Slot : - 2 PCIe x16 slot with PCIe Gen 4 x8 signal - 3 PCIe x16 slot with PCIe Gen 3 x4 signal
M.2	- 1 M.2 Key B Socket (3042/3052/2280) - 1 M.2 Key E Socket (2230)
Graphics
Graphics Processor	Intel® UHD Graphics P750/750 supports Intel® Iris® Xe Graphics architecture
Interface	Up to 7 independent displays : - 3 DisplayPort : Up to 4096 x 2304 @60Hz - By requested Graphics Card
Storage
SATA	4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
M.2	- 1 M.2 Key M Socket (2280, PCIe x4) - 1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
Storage Device	- 4 Front-access 2.5"SSD/HDD Tray - 1 M.2 Key M Socket

Audio
Audio Codec	Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT
LAN 2	Intel® I225IT 2.5G LAN
Power
Power Input	9V to 55V, DC-in
Power Interface	4-pin Terminal Block : V+, V-
Ignition Control	16-mode Software Ignition Control
Remote Switch	3-pin Terminal Block
Others
TPM	Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Mgmt.	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension	253.9mm x 215.8mm x 375.0mm (10.00" x 8.50" x 14.76")
Weight	RCX-2750R PEG : 7.6 kg (16.75 lb) RCX-2750 PEG : 7.3 kg (16.09 lb)
Mounting	Wallmount by mounting bracket
Environment
Operating Temp.	-25°C to 60°C (-13°F to 147°F)
Storage Temp.	-25°C to 85°C (-13°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative humidity	95% @60°C
Shock/Vibration	- IEC 61373 : 2010 - Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
EMC	CE, FCC, EN50155, EN50121-3-2
