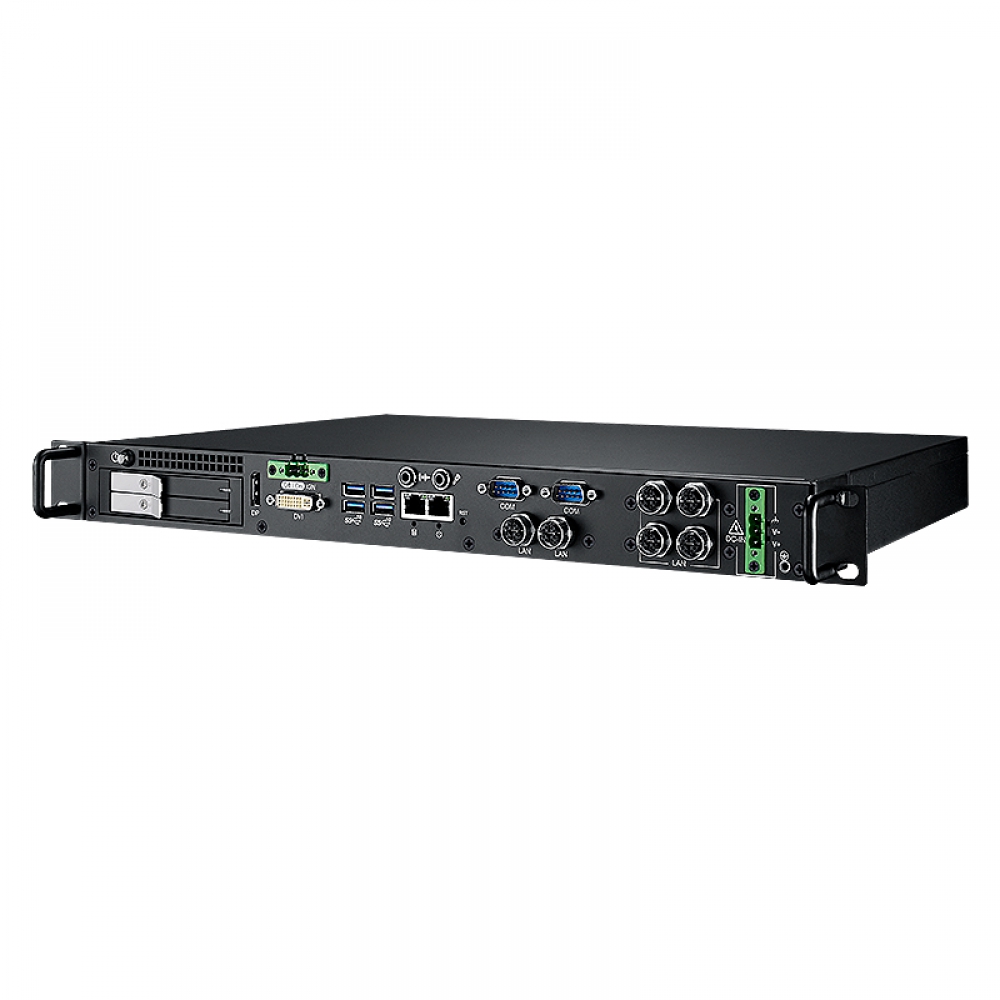

Vecow RMS-1100
8th Generation Intel® Core™ i7/i5/i3 U-Series Processor (Whiskey Lake) 1U Rackmount Fanless System, 8 GigE LAN with 6 X-coded M12, 4 10G USB 3.1 Gen 2, 2 COM RS-232/422/485, 1 SIM, 2 2.5" SSD/HDD Tray, 16V to 160V, Ignition Control, TPM, -40°C to 55°C, EN50155.- 8th Generation Intel® Core™ i7/i5/i3 U-series processor (Whiskey Lake)
- DDR4 2400MHz memory, up to 32GB
- Fanless design, up to -40°C to 55°C operating temperature
- 8-port 10/100/1000 Base-T GigE LAN with 6 X-coded M12 connections, iAMT 12.0 supported
- Max 16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection
- 4 10G USB 3.1 Gen 2, 2 COM RS-232/422/485
- 2 Front-access 2.5” SSD/HDD Tray
- SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
- Expansion：SATA III, mSATA and Mini PCIe
- Ignition Power Control
Industria / SistemasSeguridad
Smart City
Transporte
-
3G
-
4G
-
DC
-
Display Port
-
DVI
-
HDD
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Lte
-
Rugerizado
-
Serie
-
SSD
-
USB
-
Wifi
-
Windows
Specifications
| System | |
| Processor | Quad-core Intel® Core™ i7-8665UE Processor (Whiskey Lake) |
| Chipset | Intel® SoC (Cannon Lake) |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 1 DDR4 2400MHz SO-DIMM, up to 32GB |
| I/O Interface | |
| Serial | 2 COM RS-232/422/485 (ESD 8kV) |
| USB | 4 USB 3.1 Gen 2 |
| GigE LAN |
8 GigE LAN：
- 2 10/100/1000 Base-T RJ-45
- 6 10/100/1000 Base-T X-coded M12
|
| LED | Power, HDD |
| Expansion | |
| Mini PCIe |
2 Mini PCIe Socket, by request：
- 1 Full-size for PCIe/USB/SIM Card
- 1 Full-size for PCIe/USB/mSATA (Optional)
|
| Graphics | |
| Graphics Processor | Intel® UHD graphics 620 |
| Interface |
Dual display：
- DVI-D : Up to 1920 x 1200 @60Hz
- DisplayPort：Up to 4096 x 2304 @60Hz
|
| Storage | |
| SATA | 2 Front-access SSD/HDD Tray |
| mSATA | Full size Mini PCIe Type, 6Gbps |
| Audio | |
| Audio Codec | Realtek ALC888S, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0, RJ45 Type |
| LAN 2 | Intel® I210 GigE LAN, RJ45 Type |
| LAN 3 | Intel® I210 GigE LAN X-coded M12 Type |
| LAN 4 | Intel® I210 GigE LAN X-coded M12 Type |
| LAN 5 | Intel® I210 GigE LAN X-coded M12 Type |
| LAN 6 | Intel® I210 GigE LAN X-coded M12 Type |
| LAN 7 | Intel® I210 GigE LAN X-coded M12 Type |
| LAN 8 | Intel® I210 GigE LAN X-coded M12 Type |
| Power | |
| Power Input | 16V to 160V DC-in |
| Power Interface | 3-pin Terminal Block：V+, V-, Frame Ground |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block on, Off, IGN |
| Isolation | 4kV DC |
| Surge Protection | 0.5kV DC 8/20us Surge |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension | 482.6mm x 301.4mm x 44.0mm (19.00" x 11.87" x 1.73") |
| Weight | 4.0 kg (8.82 lb) |
| Environment | |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 55°C |
| Shock |
- IEC 60068-2-27, IEC 61373
- SSD : 50G@Wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64, IEC 61373
- SSD : 50Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
