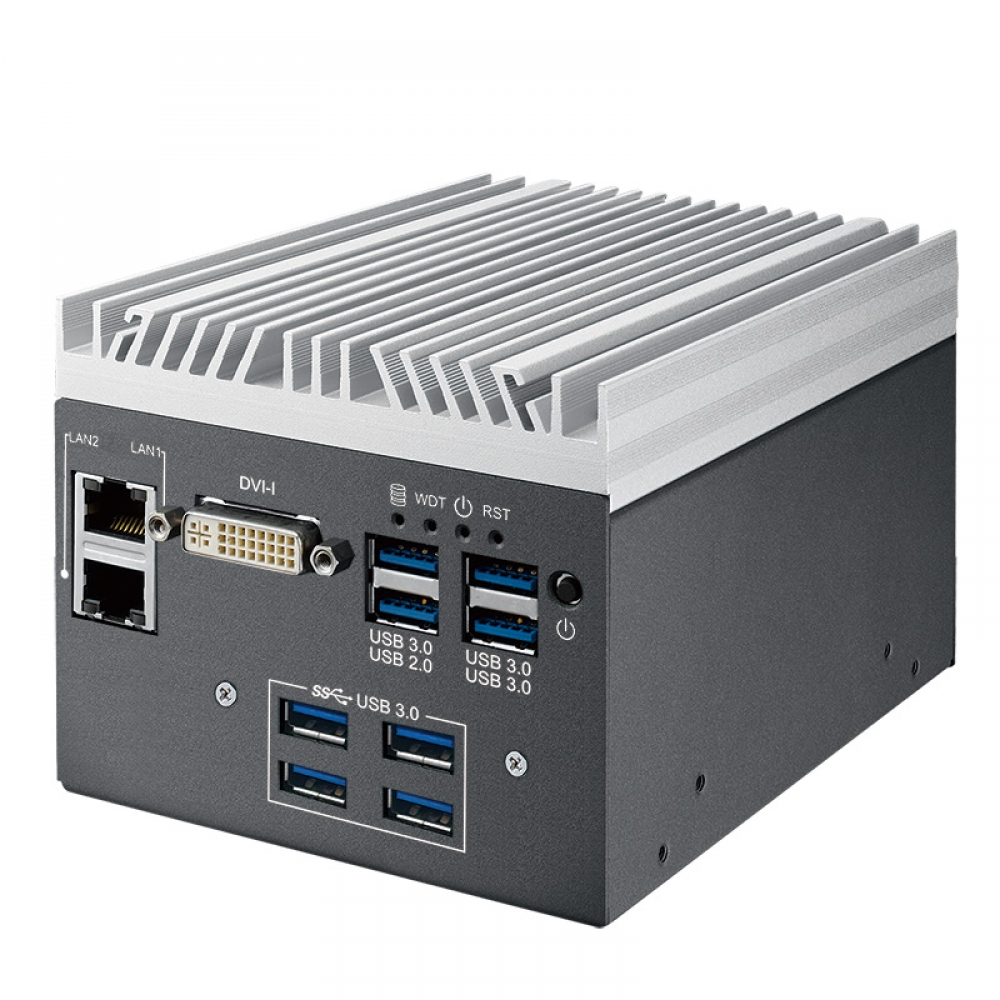

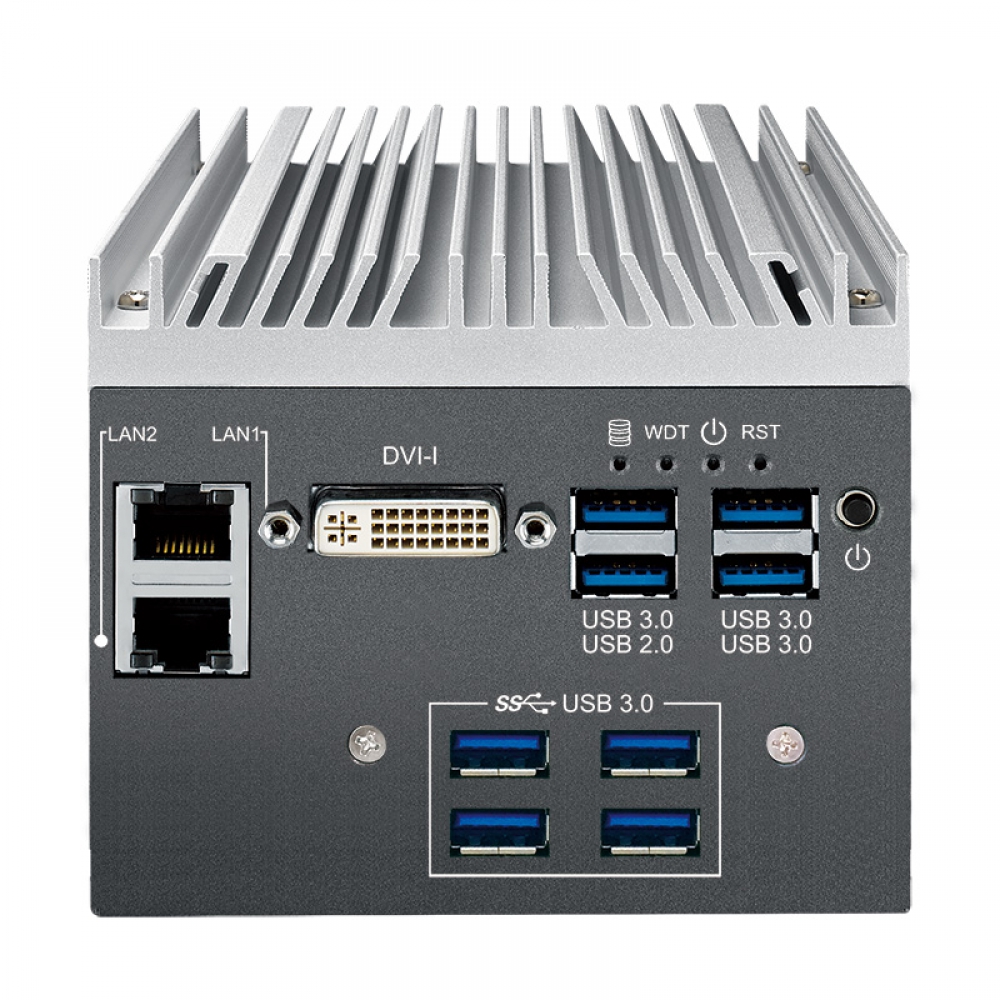

Vecow SPC-2900-LGN

Ultra Compact Embedded System with Quad Core Intel® J1900, 2 Gigabit LAN, 7 USB 3.0, Renesas USB Controllers, 4 COM, Isolated DIO, Fanless, Rugged, Extended Temperature.
  • Quad Core Intel® Celeron® Processor J1900
  • Rugged, -25°C to 70°C Operating Temperature
  • Fanless and Ultra-compact
  • 6V to 36V DC Power Input
  • DVI-I for VGA/DVI/HDMI Video Output
  • Renesas USB 3.0 Technology, up to 7 USB 3.0
  • Dual Independent Gigabit LAN
  • 8 Isolated DIO
  • 4 COM (RS-232/422/485) with Auto Flow Control
  • Supports External CFast Card/ SSD Tray (Optional)
Industria / Sistemas
Transporte
  • DC
    DC
  • DVI
    DVI
  • HDD
    HDD
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • Linux
    Linux
  • Serie
    Serie
  • USB
    USB
  • VGA
    VGA
  • Rango extendido de temperatura
    Rango extendido de temperatura
  • Windows
    Windows

Specifications

Processor

Quad Core Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)

Chipset

Intel® SoC (Bay Trail)

BIOS

AMI

SIO

IT8786E

Memory

1 DDR3L 1333MHz SO-DIMM, up to 8GB

OS Support

Windows 10, Windows 8.1, Windows 7, Linux

Serial

4 COM RS-232/ 422/ 485

USB

- 7 USB 3.0 (External)- 1 USB 2.0 (External)

DIO

8 Isolated DIO : 4 DI, 4 DO

LED

Power, HDD, WTD

Graphics Processor

Intel® HD

Interface

DVI-I for VGA/ DVI/ HDMI output : - DVI : Up to 1920 x 1080 - VGA : Up to 2560 x 1600

SATA

1 SATA II (3Gbps)

Audio Codec

Realtek ALC892, 5.1 Channel HD Audio

Audio Interface

1 Line-out

LAN 1

Gigabit LAN by Intel® I210



LAN 2

Gigabit LAN by Intel® I210

Power Input

6V to 36V, DC-in

Power Interface

2-pin Terminal Block : V+, V-

Remote Switch

2-pin Terminal Block : On, Off

Watchdog Timer

Reset : 1 to 255 sec./min. per step

Smart Management

Wake on LAN, PXE supported

HW Monitor

Monitoring temperature, voltages. Auto throttling control when CPU overheats

Dimension (W x L x H)

106mm x 150.4mm x 91mm (4.2” x 5.9” x 3.6”)

Weight

1.6 kg (3.5 lb)

Mounting

- Wallmount by mounting bracket- DIN Rail Mount (Optional)

Operating Temperature

-25°C to 70°C (-13°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5% to 95% Humidity, Non-condensing

Relative Humidity

95% @ 70°C

Shock

- IEC 60068-2-27- SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration

- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC

CE, FCC, EN 50155, EN 50121-3-2
