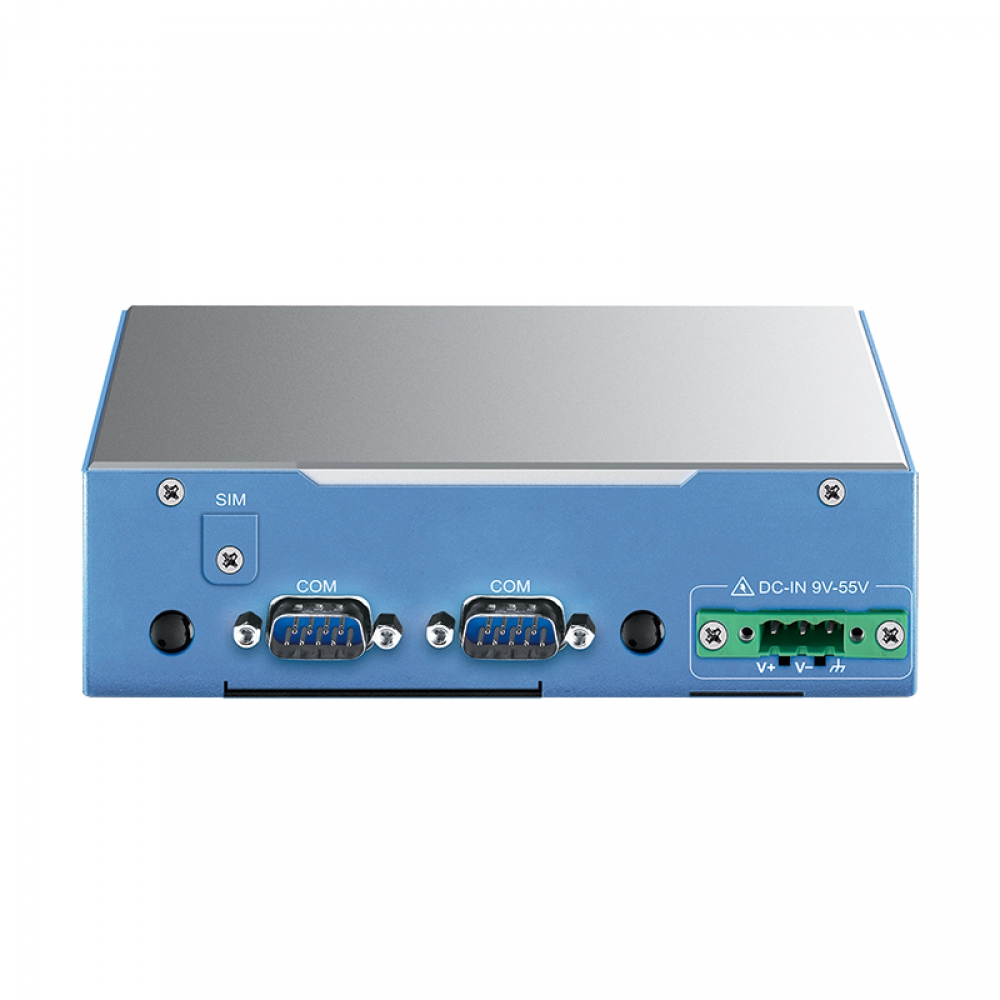

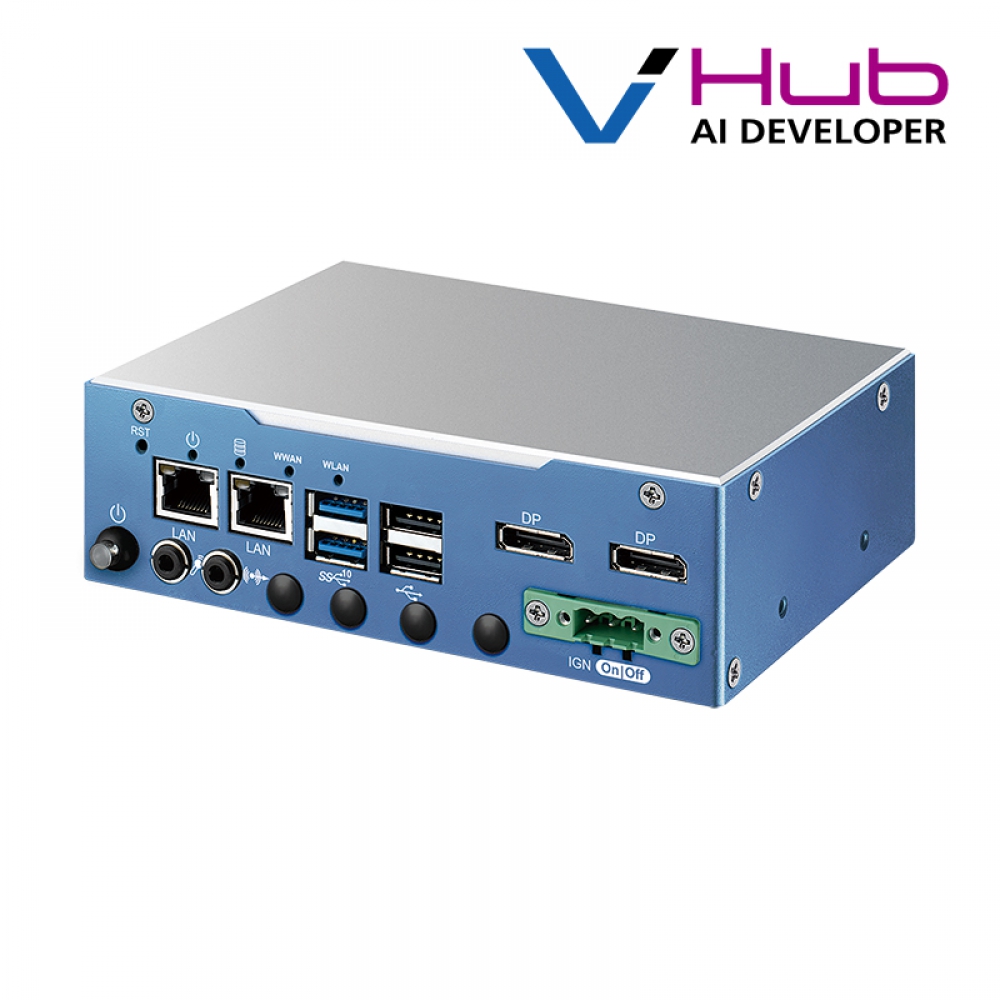

Vecow SPC-7000
11th Gen Intel® Core™ i7/i5/i3 Processor (Tiger Lake) Ultra-Compact Fanless Embedded Box PC, 1 GigE LAN, 1 2.5 GigE LAN, 10G USB, 2 COM, 1 SIM Socket, 1 SSD Bracket, DC 9V to 55V, High Performance, Rugged, -40°C to 60°C Operating Temperature.
- 11th Gen Intel® Core™ i7/i5/i3 processor (Tiger Lake UP3) delivers new generation system productivity than ever, up to 28W TDP
- Compact & Fanless design, up to -40°C to 60°C operating temperature
- DDR4 3200MHz memory, up to 32GB
- Dual DisplayPort display, up to 4K resolution
- Multiple USB supports up to 10Gbps data transfer
- 1 Independent 2.5GigE LAN supports Intel® Time Sensitive Networking (TSN) for real-time data synchronization
- 1 GigE LAN supports iAMT, TPM 2.0 supported
- DC 9V to 55V wide range power input, Ignition Control
- SIM Socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
- Optional supports full function SUMIT A, B expansions for multiple 10GigE LAN, 10G SFP+, 5G Network, SIM Socket, PoE LAN, Serial Port, GigE LAN, Fiber LAN, or Video Capture
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Industria / SistemasSeguridad
Smart City
Transporte
-
3G
-
4G
-
5G
-
DC
-
Display Port
-
Sin ventilación
-
HDD
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Lte
-
POE
-
Serie
-
USB
-
Rango extendido de temperatura
-
Wifi
-
Windows
Specifications
| System | |
| Processor | Quad Core Intel® Core™ i7/i5/i3 Processor (Tiger Lake UP3) |
| Chipset | Intel® SoC (Tiger Lake) |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 1 DDR4 3200MHz SO-DIMM, up to 32GB |
| Graphics | |
| Graphics Processor | Intel® Iris® Xe Graphics |
| Graphics Interface |
Supports Dual display：
- DisplayPort 1：Up to 4096 x 2304 @60Hz
- DisplayPort 2：Up to 4096 x 2304 @60Hz
|
| Ethernet | |
| LAN 1 | Intel® Ethernet Controller I219LM GigE LAN supports iAMT |
| LAN 2 | Intel® Ethernet Controller I225-IT supports 2.5 GigE LAN |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Storage | |
| M.2 | 1 M.2 Key B 2260 Socket |
| SATA | 1 SATA III (6Gbps) |
| I/O Interface | |
| Serial | 2 COM RS-232/422/485 (ESD 8KV) |
| USB |
- 2 USB 3.1 (External)
- 2 USB 2.0 (External)
- 2 USB 2.0 (Internal)
|
| LED | Power, HDD, WWAN, WLAN |
| SIM | 1 External Nano SIM Card Socket |
| Expansion | |
| M.2 |
- 1 M.2 Key B Socket (2260/3042/3052,PCIe x2/USB 3, Default/USB 2)
- 1 M.2 Key E Socket (2230, PCIe/USB)
|
| SUMIT A, B | 2 SUMIT Slot (Optional, with customized chassis) |
| Power | |
| Power Input | DC 9V to 55V |
| Power Interface | 3-pin Terminal Block：V+,V-, Frame Ground |
| Ignition Control | 16 Mode Ignition Control |
| Remote Switch | 2-pin Terminal Block |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension | 150.4mm x 106.2mm x 44.2mm (5.92" x 4.18" x 1.74") |
| Weight | 0.9 kg (1.98 lb) |
| Mounting |
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- VESA Mount (Optional)
|
| Environment | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) @15W TDP CPU |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @75°C |
| Shock |
-IEC 60068-2-27
-SSD：50G @ wallmount, Half-sine, 11ms
|
| Vibration |
-IEC 60068-2-64
-SSD：5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
