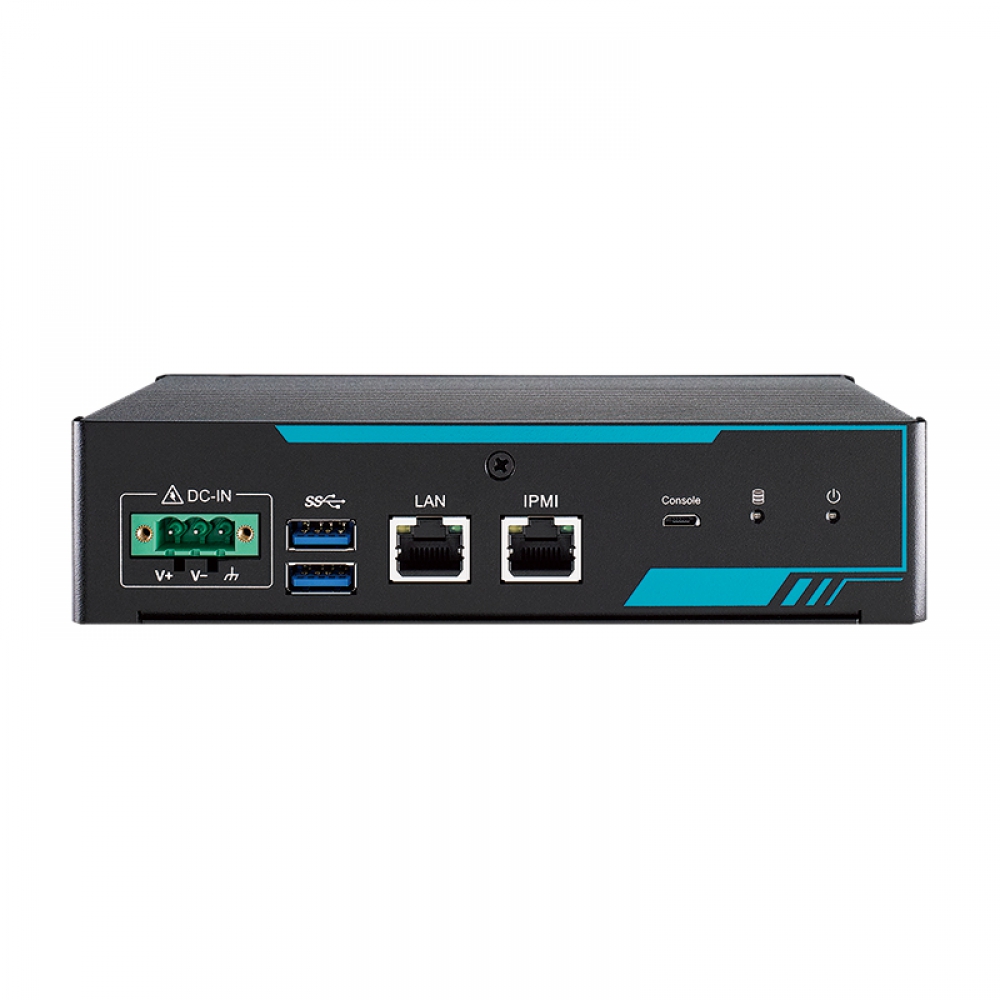

Vecow VAC-1000
Vecow VAC-1000 is an Arm-based Edge AI computing system that is powered by 24-core Cortex-A53 processor, with 64-bit MPU capabilities up to 1GHz and integrated advanced AI accelerator Hailo-8™ and Lightspeeur® to deliver improved efficiency and integration. Featuring simplified I/O interfaces including 1 GigE LAN, 1 IPMI, 2 USB 3.0, 1 Micro USB and equipped with 1 SATA and 1 M.2 form factor storage, Vecow VAC-1000 is a compact design yet provides mighty configurations and is ideally suited for the latest IoT Edge computing solutions including Public Surveillance, Factory Automation, Smart Retail, Traffic Vision, and any AIoT/Industry 4.0 applications.- 24-core Foxconn Cortex-A53 Server-grade Computing
- Advanced AI Accelerator supports up to 5.6 Tera-Operations Per Second (TOPS)
- 1 DDR4 2133MHz Memory with ECC, support up to 16GB
- 9V to 55V wide range DC Power Input
- 1 GigE LAN, 1 IPMI, 2 USB 3.0, 1 Micro USB
- M.2 Key M 2280 for PCIe NVMe SSD
- Support Cross-Platform IP video management system (VMS) for real-time surveillance
Industria / SistemasSeguridad
Smart City
Transporte
-
ARM
-
DC
-
Interfaz
-
LAN
-
Linux
-
SSD
-
USB
Specifications
| System | |
| Processor | 24-core Arm Cortex-A53 Processor (Foxconn FXN3102) |
| Memory | 1 DDR4 2133MHz 16GB ECC SO-DIMM |
| Flash | 1 SPI Flash, 512MB |
| EEPROM | 1 SPI EEPROM, up to 512KB |
| OS | Ubuntu Server 18.04 LTS |
| AI Accelerator | |
| Processor | Lightspeeur® 2801S Neural Accelerator, up to 5.6 TOPS |
| Framework | TensorFlow, Caffe, PyTorch |
| I/O Interface | |
| USB | 2 USB 3.0 Type A |
| Micro USB |
- 1 Micro USB console port for debug (External)
- 1 Micro USB console port for firmware update (Internal)
|
| LED | Power, SSD |
| Storage | |
| SATA | 1 SATA III (6Gbps) |
| M.2 | 1 M.2 Key M Socket (2280, PCIe) |
| eMMC | 1 64GB eMMC, supports MMC4.41/HS200 |
| Ethernet | |
| LAN | 10/100/1000 Base-T Ethernet GigE LAN, RJ45 connector |
| IPMI | 10/100/1000 Base-T Ethernet IPMI, RJ45 connector |
| Power | |
| Power Input | DC 9V to 55V |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Software | |
| Operation System |
- Ubuntu Server 18.04LTS(Linux kernel 4.14.0)
- Supports bootup from Flash drive / eMMC
- Supports backup from Flash drive
- File System : EXT4
|
| Toolchain | gcc-linaro-6.4.1-2017.11-x86_64_aarch64-linux-gnu |
| Script Language | Python |
| Mechanical | |
| Dimension | 170mm x 118mm x 40mm (6.7" x 4.6" x 1.6") |
| Weight | 0.9 kg (2.0 lb) |
| Mounting |
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
|
| Environment | |
| Operating Temp. |
VAC-1000-W16E: -40°C to 70°C (-40°F to 158°F)
VAC-1000-16E: 0°C to 55°C (32°F to 131°F)
|
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% @55°C |
| Shock |
- IEC 60068-2-27
- SSD : 50G @wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
