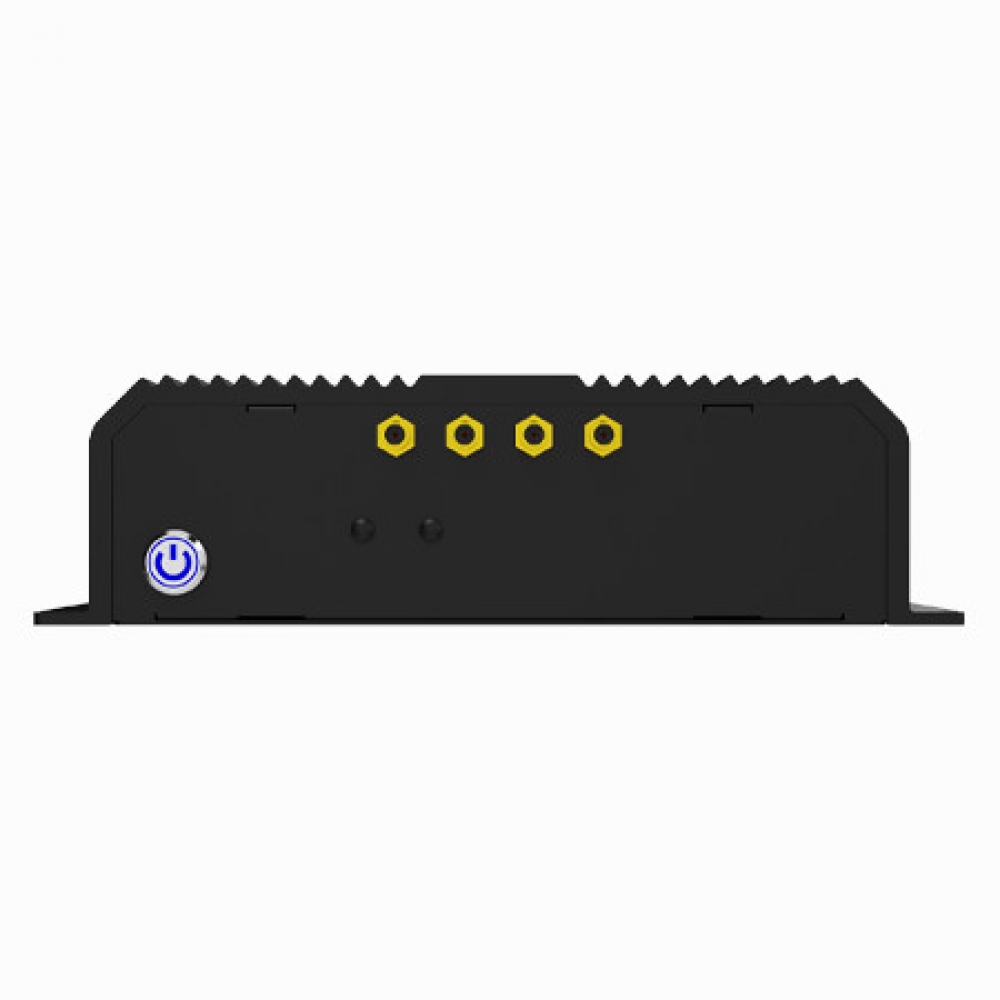

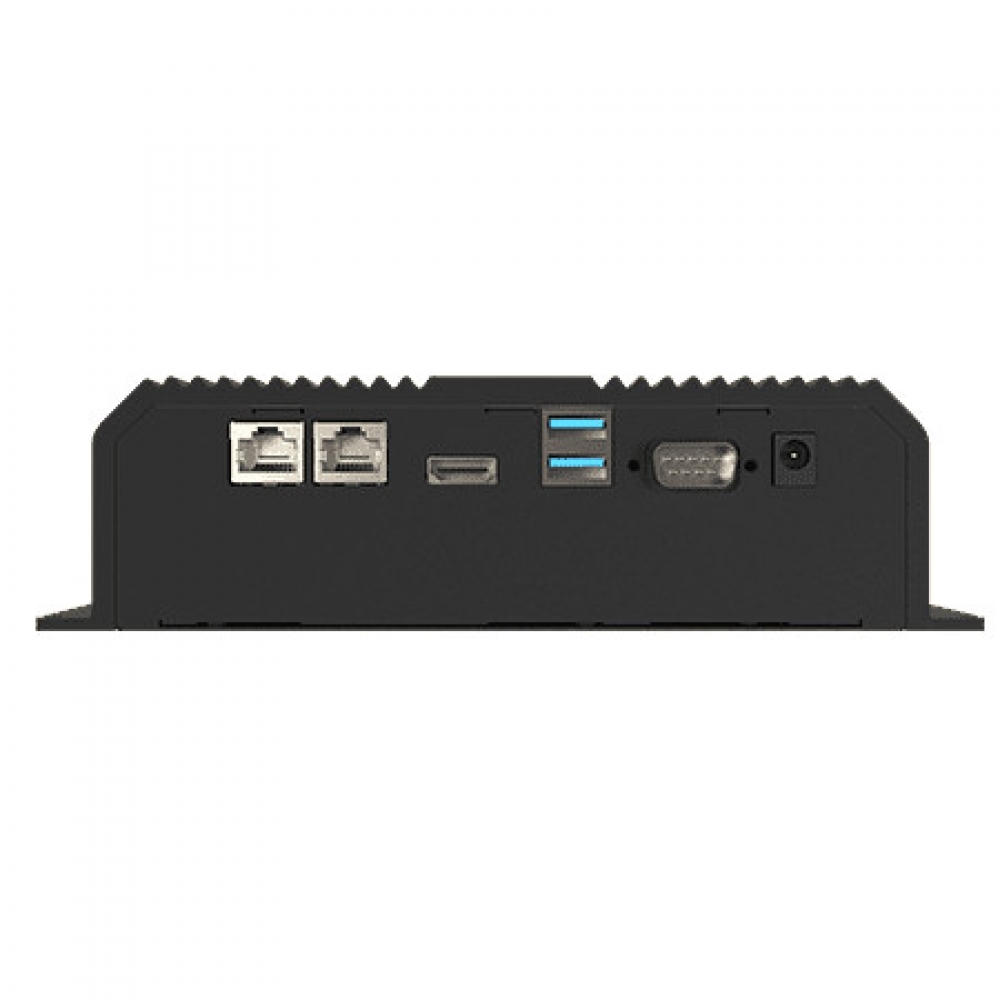

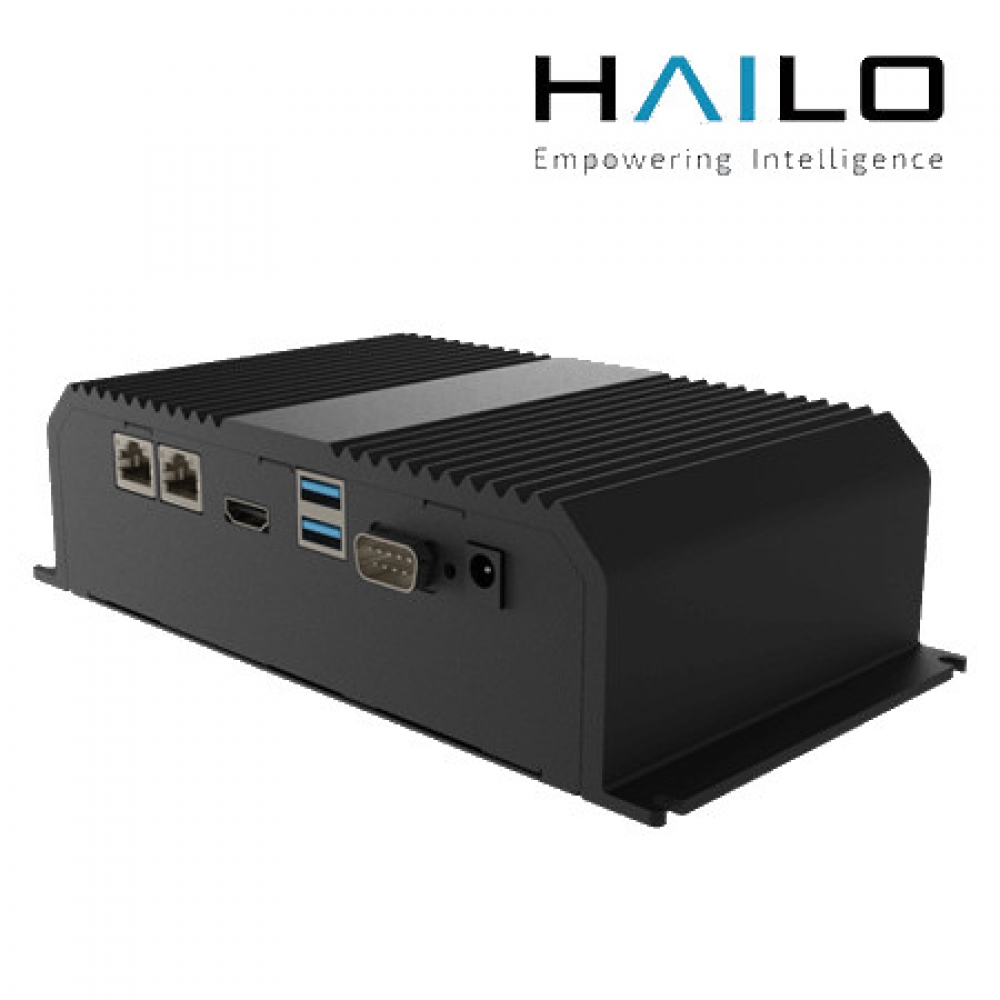

Winmate IE32SB3-101AI
Edge AI Computer with Hailo-8™ M.2 AI Acceleration Module- Intel Atom® x6413E Processor 1.5M Cache, up to 3.00 GHz
- Integrated 26 TOPS Hailo-8™ AI Processor with best power efficiency
- Low latency and high-efficiency AI inferencing on edge device
- 1 x DDR4 SO-DIMM 3200 MHz, max. 16GB
- Supports 2 x USB 3.2 Gen 2x1, Max. 3 x COM
- Elegant and slim mechanic
Industria / Sistemas
-
AC
-
DC
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Serie
-
USB
-
Windows
Specifications
Processor
Intel Atom® x6413E ( up to 3.0GHz)
Memory
1 x SO-DIMM, DDR4 3200 MHz, 8GB 16GB (Optional)
Storage
1 x M.2 2242 B-key SSD 256GB 512GB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
AI Accelerator
Hailo 8™ AI accelerator module, up to 26 TOPS
Graphic Card
Hailo 8™ AI accelerator module, up to 26 TOPS
205 x 110 x 55 mm
Weight
1.1 kg
Mounting
Desk Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH, Non-Condensing
Operating Temperature
0°C to 55°C
Storage Temperature
-10°C to 60°C
CE, FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1~2 x RS232 (Optional)
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Power Input
1 x 12V DC, 2.5φ DC jack
Button
1 x Power Button
Accessory
1 x 100~240V AC to DC Adapter 1 x Power Cord 1 x Quick Start Guide 6 x M4*8 desk mount screws
Power Rating
12V DC
