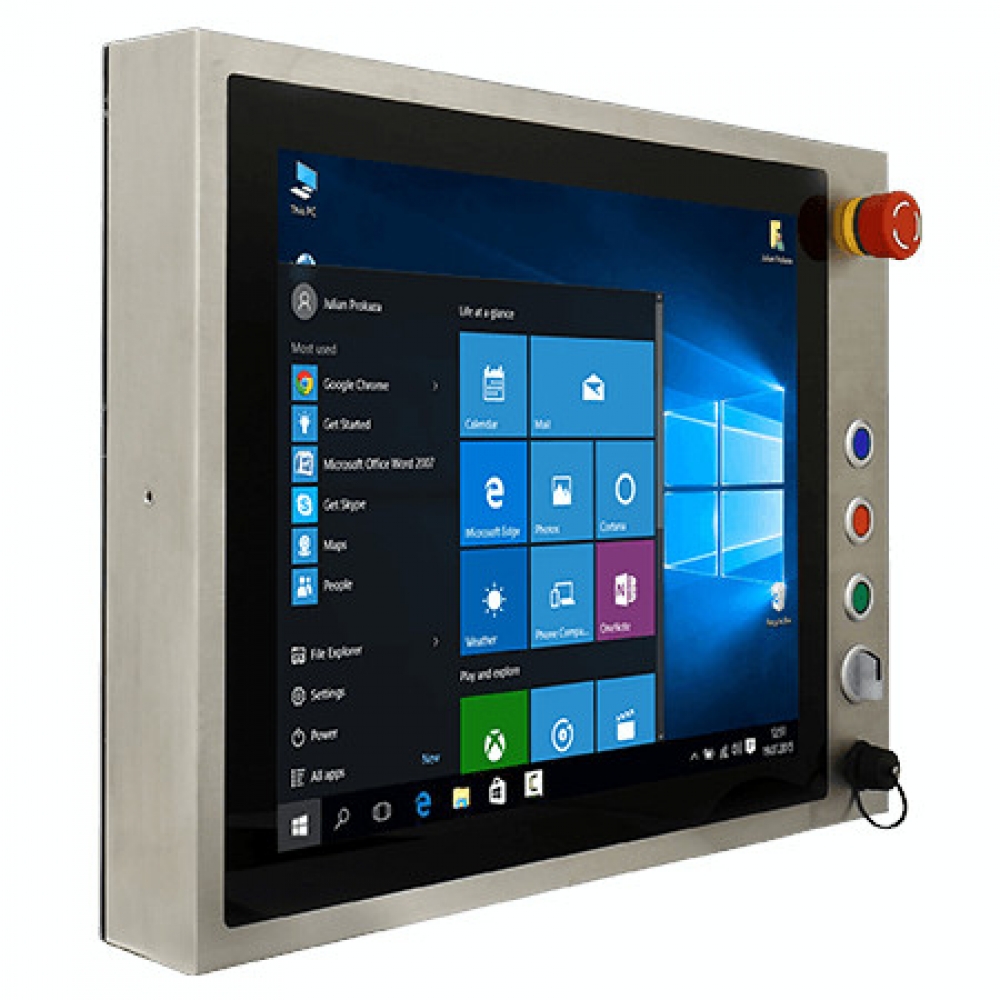

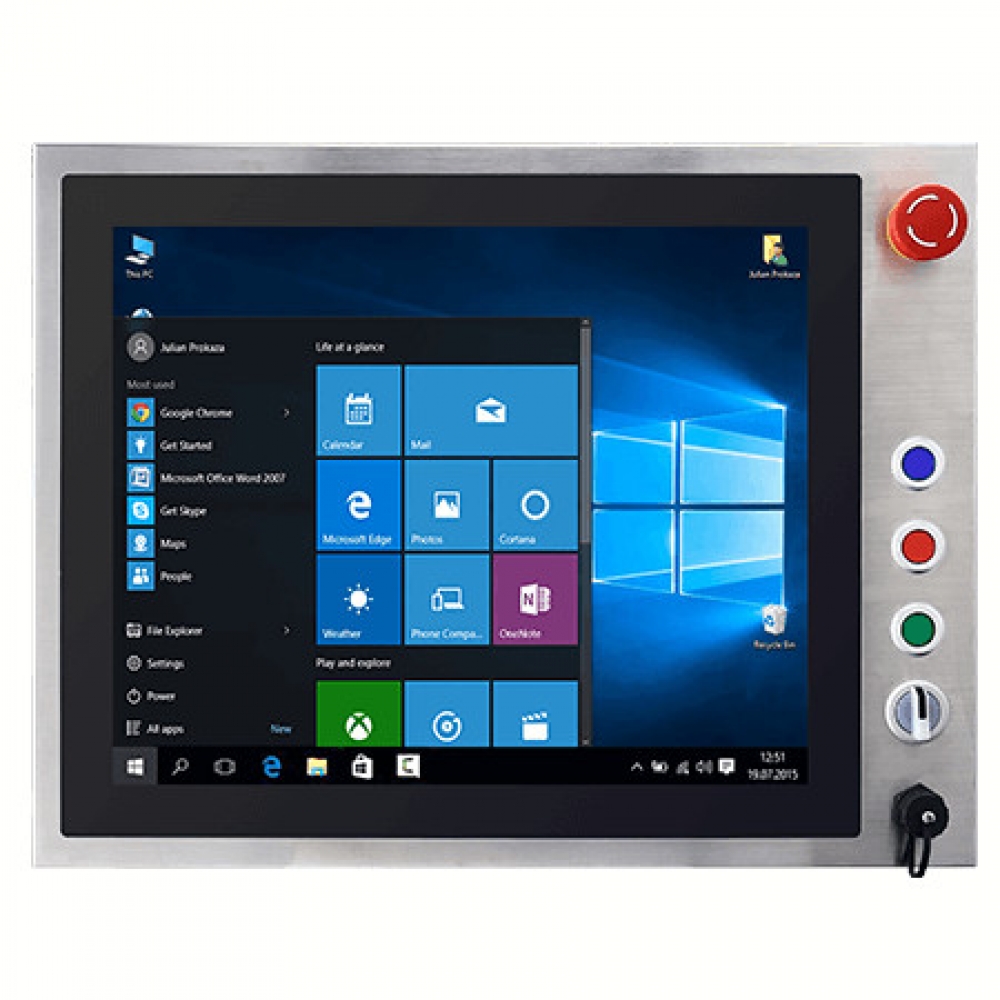

Winmate R15IE3S-SPC3-B

15" Intel® Celeron® N6211 IP65 Stainless B Series Panel PC

Intel® Celeron® Elkhart Lake N6211 processor
Fanless cooling system
SUS 316 / AISI 316 stainless steel for food and chemical industries
Full IP65 waterproof enclosure
A true flat, easy-to-clean front surface with edge-to-edge design
Supports VESA mount
Rotary switch adjust different touch mode for Hand / Rain / Glove application
Emergency and Flat buttons for automation device control
Optical bonding (optional)

Industria / Display

Display Port
HDD
Intel
Interfaz
IP6X
IPX5
Linux
Multi-táctil
SSD
USB

Specifications

Display

Size

15.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1024x768

Panel Brightness

300.0 nits

Contrast Ratio

2000:1

View Angles

88,88,88,88

Active Area

304.1x228.1 mm

System Specification

Processor

Intel® Celeron® N6211 (up to 2.6GHz) Intel® Celeron® N6210 ( up to 3.0GHz) (Optional)

Memory

1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional)

Storage

1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)

WLAN

Support (Optional)

Mechanical

Dimension

426 x 301 x 69 mm

Mounting

VESA Mount

Enclosure

Stainless Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 45°C

Storage Temperature

-20°C to 60°C

IP rating

IP65

Certification

CE, FCC

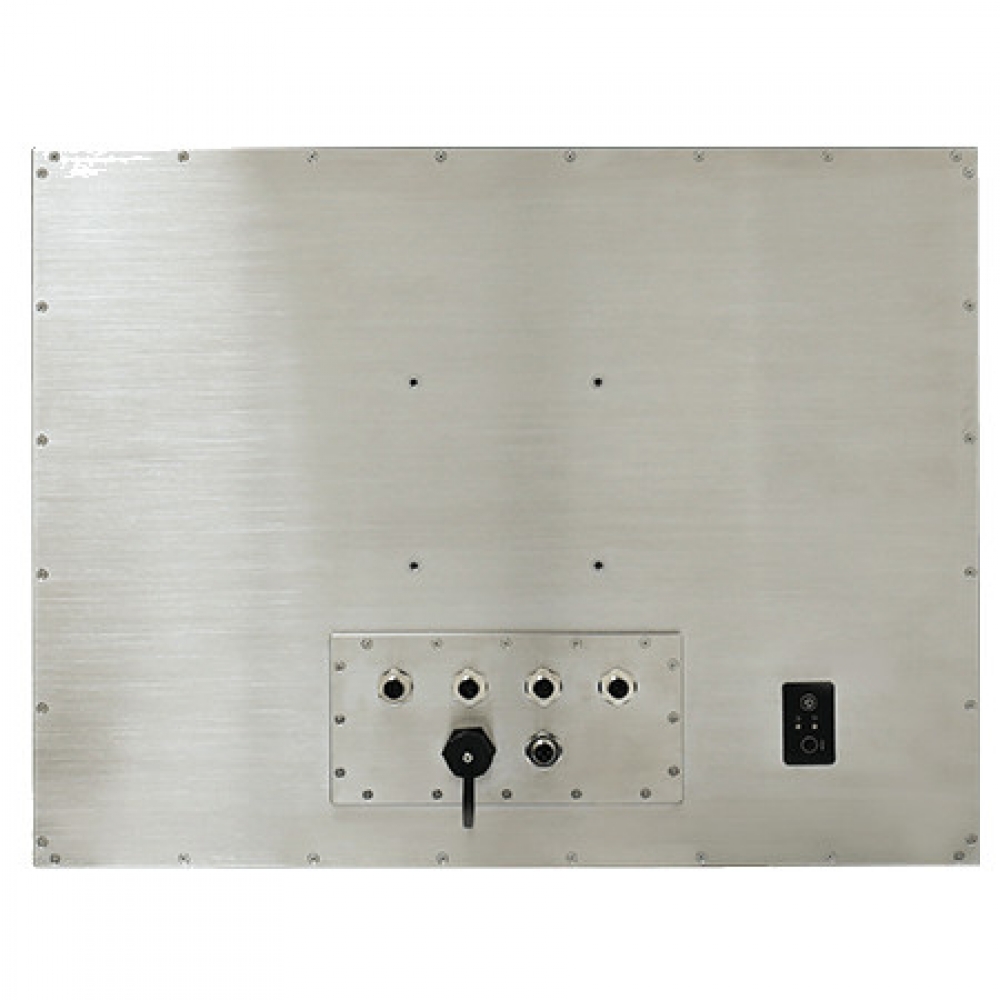

IO Ports

USB Port

1 x M12 waterproof connector for 2 x USB2.0 1 x Front waterproof connector for USB2.0 type-A

Serial Port

1 x M12 waterproof connector for RS232

LAN

1 x waterproof Giga LAN RJ45 connector

Expansion Port

CN1 and CN2 for front button control

Indicator

1 x LED Indicator for power 1 x LED Indicator for storage

Power Input

1 x M12 waterproof connector for 12V DC

Control

Button

Rear side: 1 x Power Button 1 x Reset Button Front side: 1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector 1 x Rotary Switch for touch mode

Accessory

100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector External cables for CN1 & CN2 with waterproof connector Waterproof caps RJ45 female-female converter VESA screws

Optional Accessory

1 x Open wire cable for M12 connector

Power

Power Rating

M12 Type: 12V DC 9~36V DC (Optio
